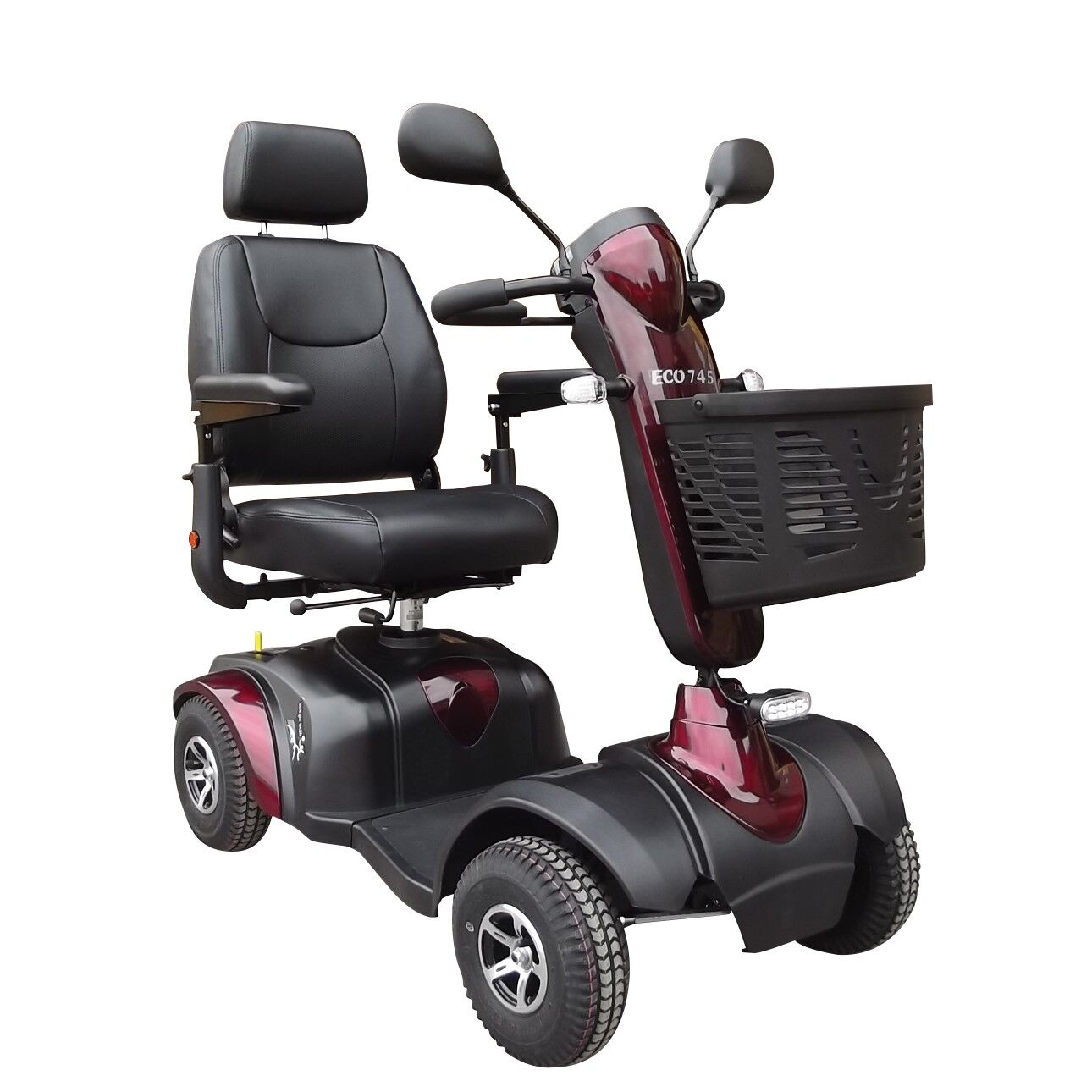

    Merits 745 Eco

    $3,700.00

    Enquire Now

    Description

    Merits 745 Eco – Stylish, eye catching design with an attractive and modern colour range. With a built-in speed reduction switch, which operates automatically when turning to provide exceptional safety

    Features

    • Stylish, eye catching design with an attractive and modern colour range
    • Loop handlebars offer comfortable throttle operation
    • Adjustable, high-back contoured seat with simple operation of slide & swivel mechanisms to allow maximum user comfort
    • Infinite adjustment of steering tiller means anyone can easily find a comfortable position
    • High mount charger socket, allowing for easy access when charging
    • Removable front basket with carry handle
    • Adjustable power saving LED headlight, indicators front & rear, rear tail lights, and reverse warning
    • Built-in speed reduction switch, which operates automatically when turning to provide exceptional safety

    Specifications

    Overall Dimension (L x W x H): 120 x 61 x 99cm/47 x 24 x 39″
    Seat Dimension (W x D x H): 46 x 40 x 46cm/18 x 16 x 18″
    Seat Height from Ground : 53-58cm/21-23″
    Seat Height from Deck : 40-47cm/16-18.5″
    Wheel Base : I 85cm/33.5″
    Max Speed : 10kph/6.25mph
    Range : 20-30km/13-20mi
    Turn Radius : 157cm/62″
    Ground clearance : 9.5cm/3.74″
    Motor : DC 24V, 210W (Rating)/715W (Max)
    Controller : S-Drive 70A
    Battery : 12V/34A/H x 2pcs
    Charger : 5A off-board
    Gradient : 6°
    Front Wheel : 10″ Pneumatic tire
    Rear Wheel : 10″ Pneumatic tire
    Brake : intelligent, regenerative, electromagnetic brakes

    Weight kg/lb

    Base : 51/112
    Battery/ea : 10/22
    Seat : 15/33
    Total with battery : 86/190
    Capacity : 136/300

    Additional Information

    Owners Manual
    Eco 745 Technical Brochure
    Parts Manual
