Description
Merits 745 Eco – Stylish, eye catching design with an attractive and modern colour range. With a built-in speed reduction switch, which operates automatically when turning to provide exceptional safety

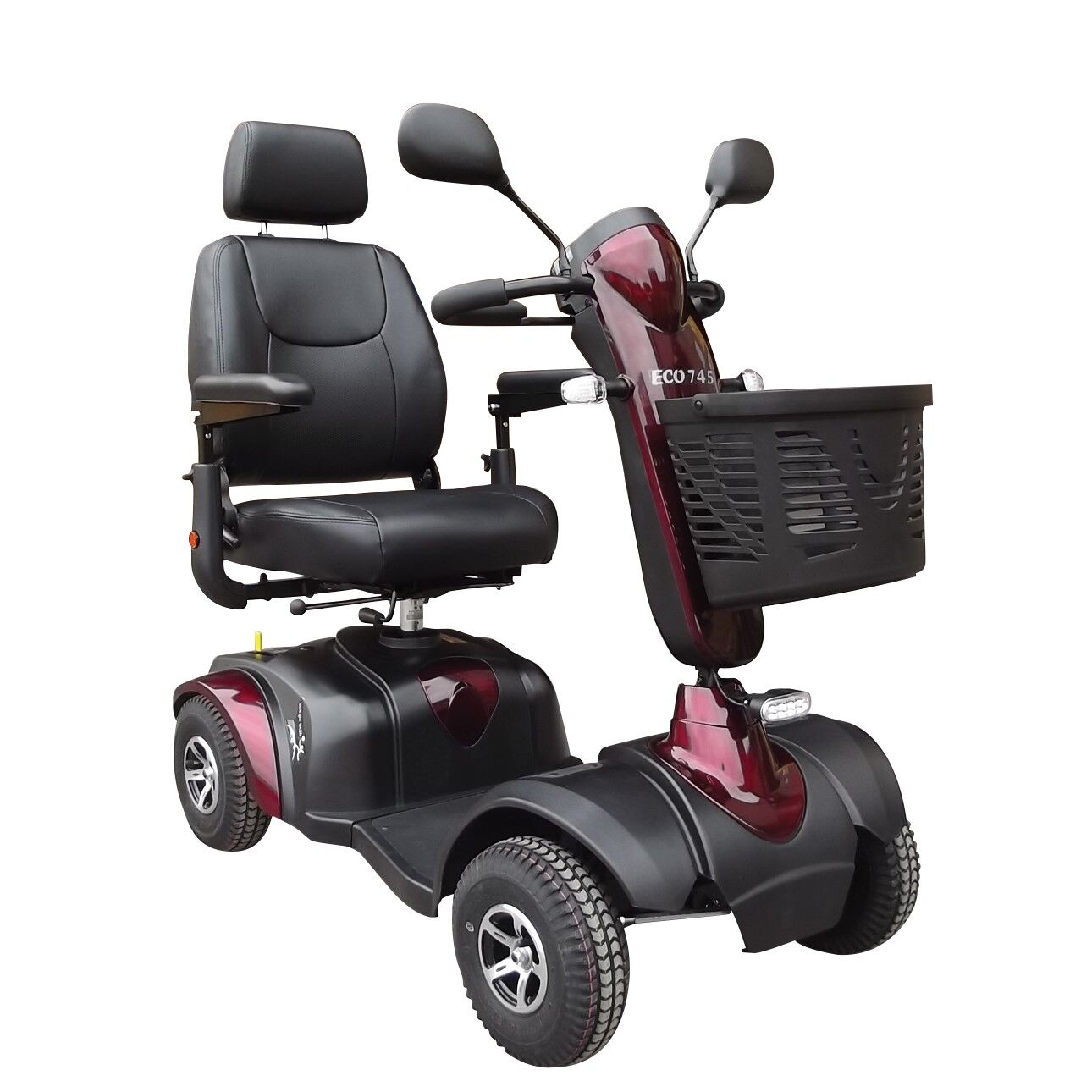

Merits 745 Eco
$3,700.00
Features
- Stylish, eye catching design with an attractive and modern colour range
- Loop handlebars offer comfortable throttle operation
- Adjustable, high-back contoured seat with simple operation of slide & swivel mechanisms to allow maximum user comfort
- Infinite adjustment of steering tiller means anyone can easily find a comfortable position
- High mount charger socket, allowing for easy access when charging
- Removable front basket with carry handle
- Adjustable power saving LED headlight, indicators front & rear, rear tail lights, and reverse warning
- Built-in speed reduction switch, which operates automatically when turning to provide exceptional safety
Specifications
Overall Dimension (L x W x H): 120 x 61 x 99cm/47 x 24 x 39″
Seat Dimension (W x D x H): 46 x 40 x 46cm/18 x 16 x 18″
Seat Height from Ground : 53-58cm/21-23″
Seat Height from Deck : 40-47cm/16-18.5″
Wheel Base : I 85cm/33.5″
Max Speed : 10kph/6.25mph
Range : 20-30km/13-20mi
Turn Radius : 157cm/62″
Ground clearance : 9.5cm/3.74″
Motor : DC 24V, 210W (Rating)/
715W (Max)
Controller : S-Drive 70A
Battery : 12V/34A/H x 2pcs
Charger : 5A off-board
Gradient : 6°
Front Wheel : 10″ Pneumatic tire
Rear Wheel : 10″ Pneumatic tire
Brake : intelligent, regenerative,
electromagnetic brakes
Weight kg/lb
base : 51/112
battery/ea : 10/22
seat : 15/33
total with battery : 86/190
capacity : 136/300
