Merits Raptor (formerly known as the Regal 344A & 344A XL) with 4 wheel adjustable suspension system allows for better rider control and comfort. Large 14” wheels which provide greater ground clearance. Larger 4 pole motor and larger controller delivering more power for climbing steep inclines
Merits Raptor (formerly known as the Regal 344A & 344A XL) with 4 wheel adjustable suspension system allows for better rider control and comfort. Large 14” wheels which provide greater ground clearance. Larger 4 pole motor and larger controller delivering more power for climbing steep inclines
Technical Specifications
Max Speed 10kph
Range 40-50km/26-32mi
Turn Radius 167cm/65.7″
Ground clearance 10cm/4″
Motor DC 24V, 650W (Rating)/2200W (Max)
Controller Rhino 160A
Battery 12V/60-80A/H x 2pcs
Charger 8A off-board
Gradient 8°
Front Wheel 14″ pneumatic
Rear Wheel 14″ pneumatic
Brake intelligent, regenerative, electromagnetic brakes
Dimensions
Overall Dimension : A x B x C 152 x 71 x 135cm/60 x 28 x 53″
Regular Seat Dimension : D x E x F 56 x 50 x 56cm/22 x 20 x 22″
Wide Seat Dimension : 80 x 46 x 51cm/31.5 x 18 x 20″
Seat Height from Ground : G 56-64cm/22-25″
Seat Height from Deck : H 40-48cm/16-19″
Wheel Base : I 104cm/41″

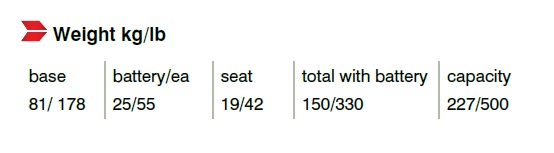

Weight Capacity: 227kg
Base Weight: 81kg
Batteries: 2 x 25kg
Seat Weight: 19kg
Total Weight with batteries: 150kg
