    Raptor

    SKU: N/A Categories: , Brand: Product ID: 20053
    Clear
    Accessories & Parts:
    Buy it with.
    Merits Rear Pannier Shopping Bag w/ Cane Holder, $230.00

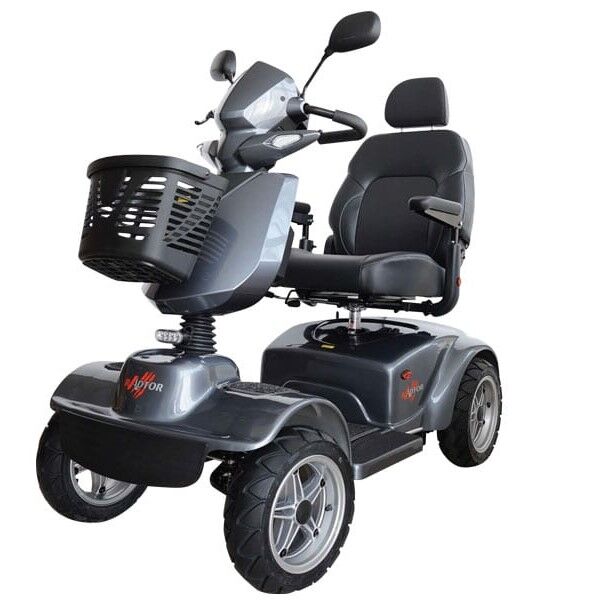

    Merits Raptor (formerly known as the Regal 344A & 344A XL) with 4 wheel adjustable suspension system allows for better rider control and comfort. Large 14” wheels which provide greater ground clearance. Larger 4 pole motor and larger controller delivering more power for climbing steep inclines

    Description

    Merits Raptor (formerly known as the Regal 344A & 344A XL) with 4 wheel adjustable suspension system allows for better rider control and comfort. Large 14” wheels which provide greater ground clearance. Larger 4 pole motor and larger controller delivering more power for climbing steep inclines

    Features

    • Looped handlebars offer comfortable throttle operation
    • 4 wheel adjustable suspension system allows for better rider control and comfort
    • Large 14” wheels which provide greater ground clearance
    • Larger 4 pole motor and larger controller delivering more power for climbing steep inclines
    • Built-in half speed safety switch which operates automatically when turning to provide extra safety
    • New and improved, fully adjustable leather-feel seat, allowing maximum rider comfort
    • Separate emergency braking system for added security
    • New, easy to access 12 volt socket
    • Available in wide seat version (Regal 344A XL)

    Specifications

    Technical Specifications

    Max Speed 10kph
    Range 40-50km/26-32mi
    Turn Radius 167cm/65.7″
    Ground clearance 10cm/4″
    Motor DC 24V, 650W (Rating)/2200W (Max)
    Controller Rhino 160A
    Battery 12V/60-80A/H x 2pcs
    Charger 8A off-board
    Gradient
    Front Wheel 14″ pneumatic
    Rear Wheel 14″ pneumatic
    Brake intelligent, regenerative, electromagnetic brakes

    Dimensions

    Overall Dimension : A x B x C 152 x 71 x 135cm/60 x 28 x 53″
    Seat Dimension : D x E x F 56 x 50 x 56cm/22 x 20 x 22″
    Seat Dimension 80 x 46 x 51cm/31.5 x 18 x 20″
    Seat Height from Ground : G 56-64cm/22-25″
    Seat Height from Deck : H 40-48cm/16-19″
    Wheel Base : I 104cm/41″
    Weight Capacity: 227kg
    Base Weight: 81kg
    Batteries: 2 x 25kg
    Seat Weight: 19kg
    Total Weight with batteries: 150kg

    Additional Information

    Raptor User Manual
    Owners Manual
