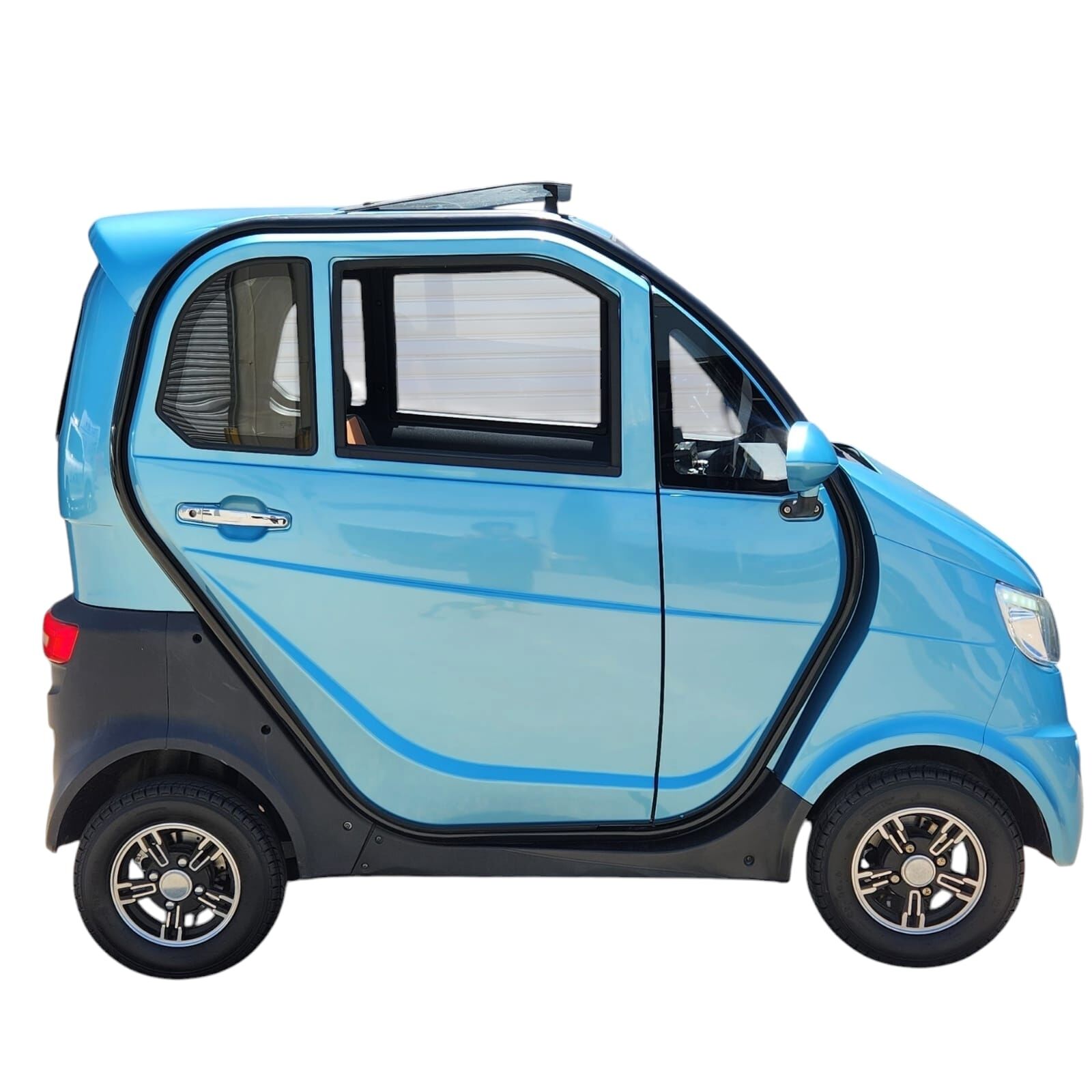

    Firefly V4LHB

    Original price was: $18,500.00.Current price is: $17,900.00.

    Category: Brand: Product ID: 22327
    Enquire Now

    FIREFLY V4LHB – 2nd 2024 upgrade model of the Daisy LEMS.

    FIREFLY V4LHB (Looped Handlebar) is an upgrade of the DAISY V2AC and Daisy Firefly V3HB LEMS that have been supplied to many very happy customers in six states of Australia.

    FIREFLY V4LHB is the latest iteration and is the most advanced, mobility user friendly, and OT (Occupational Therapist) pleasing LEMS available to date and approved by NDIS.
    It is also super safe and comfortable. A luxury enclosed mobility scooter, LEMS, fit for a royal.

    FIREFLY V4LHB is the most advanced all weather enclosed cabin mobility scooter available and is only a few hands longer and wider than some other cabin mobility scooters, making this luxury enclosed mobility scooter eminently usable and very comfortable even for the largest person, and it is crammed full of refinement, a luxury enclosed cabin mobility scooter at an affordable price. It is also much safer and much more stable than most other brands of cabin scooters.

    Meets all International Standards for motorised mobility devices.

    Approved by TGA (Therapeutic Goods Australia), and registered in the ARTGA (Australian Register of the TGA).



    Description

    FIREFLY V4LHB is an upgrade of the DAISY FIREFLY V3HB and together with the DAISY V2AC have been supplied to many very happy customers in six states of Australia.

    FIREFLY V4LHB is the second iteration (upgrade) of 2024. And it is the most advanced, mobility user friendly, and OT (Occupational Therapist) pleasing LEMS available to date, and it is super safe and comfortable. A luxury enclosed mobility scooter, LEMS, fit for a royal.

    FIREFLY V4LHB has regenerative braking, electric brake on when stopped, and now with looped handlebar (delta) with wig-wag finger operated throttle, makes this luxury enclosed mobility scooter one the most easily driven, comfortable and safest mobility scooters available.

    Firefly V4LHB is eminently usable and very comfortable for even the largest person, and it is crammed full of refinement, a luxury enclosed cabin mobility scooter at an affordable price.

    FIREFLY V4LHB has enough power and torque thanks to its’ two-speed differential, to smoothly drive anywhere you want to go, from a crawl on a pedestrian congested footpath, to a comfortable speed in the open.

    FIREFLY V4LHB has wig-wag finger-controlled throttle, and a rotary maximum speed control.
    With the two speeds in the differential, in low gear the speed can be set from 0-10 km/hr.
    In high gear, the speed control can be set from 0-30 km/hr.
    With the differential gear in low speed, there is ample torque to climb the steepest driveway, or other low speed high torque required conditions.
    This also allows you to have excellent speed control, and fast regenerative braking in crowded pedestrian footpath situations.

    FIREFLY V4LHB has many other superb features, check them out in the “Features” Section.

    FIREFLY V4LHB is an all-weather (from freezing cold to boiling hot) LEMS, luxury Enclosed Mobility Scooter, fit for a royal.

    TGA Approved / ARTGA Registered.

    CCC / ISO Certification
    Meets all International Standards and requirements for electric motorised mobility devices.

    With Hi / Lo Gear Shift ! Go anywhere thanks to the two-speed differential.

    FIREFLY V4LHB 2024 model with “looped handlebar” has been upgraded to have finger operated wig-wag throttle, electronic regenerative braking and foot assistance braking if desired/required. When stopped, an electric brake is engaged and the FIREFLY cannot move, regardless of the slope. It also has a hand-brake on the floor in case you have the electric brake disengaged.

    Other Standard features are; very effective Heater/Demister and Aircon, 1.5kW Motor, 60V80Ah Lithium Battery, Soft start with delay controller, 350 kg load, 0-10-30 /kph maximum speeds, 30 km usable range.

    Now you can get out of the home in any weather to go shopping, visit your friends and go to other places as required, with the amplest space of any rear seat, and floor area. You can even carry a Travelscoot.
    Just get in and forget the weather !

    Features

    • 2024 2nd model with new features, looped handlebar with wig-wag finger-tip controlled throttle, electronic regenerative braking with electric brake on when stopped. It also has foot braking, and a hand brake on the floor.
    • Two door key lockable
    • Electric windows
    • Looped handle bar steering
    • Finger tip operated wig-wag throttle
    • Maximum range of up to 38 km *
    • Usable Range 30 km maximum *
    • Max speeds variable 0-10-30 kph
    • Hi/Low Gear Shift ! Climb any driveway or hill / mix it with pedestrians
    • Damping Suspension Adjustable and very effective front and rear shock absorbers
    • Electronic Regenerative braking
    • Electric Brake on when stopped will hold on any slope
    • Foot Braking Hydraulic disk brakes on all four wheels
    • Hand Parking Brake on the floor on rear wheels, use if the electric brake is disengaged
    • AC Motor Heavy duty, Brushless no maintenance
    • Controller Heavy duty, soft start with delay (very nice)
    • Lithium Battery Ternary, biggest capacity
    • Weight Capacity 350kg
    • Driver Weight Capacity 250 kg
    • Certification CCC / ISO
    • TGA / ARTGA Approved and registered
    • NDIS Approved
    • OT Approved

    * Depends on user mass, terrain and battery type / size and condition, based on 80 kg driver on straight and level smooth hard ground, all things in good condition, and a steady speed.

    Equipment:
    • Loop Handlebar steering with wig-wag finger control
    • Windscreen wiper with washer
    • Key lock door
    • Electric windows
    • LCD electronic instrument dashboard
    • Blue tooth, USB, auxiliary
    • MP3 Media and Radio with multi display function control
    • Battery capacity gauge, with voltage read-out
    • Speed display large easily seen digital
    • Odometer
    • Tripmeter
    • Speaker
    • Rear vision mirrors
    • Rear view camera
    • Key start / stop
    • Heater / Demister
    • Air Conditioner
    • LED lights powerful and elegant, front and rear
    • High / low beam halogen head lights
    • Fog light
    • Indicators
    • Rear plate light
    • Soft start controller
    • Variable electronic maximum speed
    • Hi / Low 2-speed differential gear shift
    • Horn
    • Two doors with locking
    • Large skylight opening
    • Rear window opening
    • Good hydraulic shock absorbing suspension
    • Large wheels with pneumatic tyres for a good ride
    • Hydraulic disk brakes four wheels – foot operated
    • Hand brake on floor on rear wheels
    • Electric brake on full stop on motor and rear wheels
      NOTE: Electric Brake must be engaged, lever on right side of motor.
      Disengage to move Firefly LHB manually. It can be driven with electric braking disengaged, but the electric brake will not work when LEMS is stopped.
    • Sliding / tilting front captain’s seat – comfortable
    • Seatbelts 3pt front, 2 pt rear (must be worn while on a road)
    • Large space in rear for shopping and goods
      (Passengers allowed, suggest getting local dispensation/approval)

    Specifications

    Manufacturer: Xili Vehicle Co

    Exporter: Jiangsu Ruipaiying Import and Export Co Ltd

    Importer: Ronica Trade Pty Ltd

    Distributors: Mobility Scooters for Hire sale Service / Dealers nationwide / New dealers welcomed

    Model Number: HMY

    Model: Daisy

    Model Version: Firefly V4LHB

    Certification: CCC / ISO 9001

    Registration: TGA / ARTGA

    Approvals: NDIS and OT

    Available Colours: 12 Colour Options

    Dimensions: 227 x 110 x 160 cm (L x W x H)

    Weight (total): 337 kg

    Weight without batteries: 300 kg

    Weight capacity: 350 kg

    Driver capacity: 250 kg

    Wheelbase: 154 cm

    Span Rear Wheels: 98 cm

    Body Type: Unitary construction

    Maximum speeds variable: 0-10-30 kph
    Do not exceed 10 kph on paths with pedestrians (in low differential gear 10km/hr is the maximum)

    Maximum range *: 30 km usable

    Maximum slope *: 23° 44%

    Ground Clearance: 15 cm

    Heater: Yes

    Aircon: Yes

    Motor: 60V 1500W brushless AC

    Battery: 60V 80Ah Lithium Ternary

    Battery charger: 71.4V 10A

    Controller: Electronic delayed soft start

    Drive Type: Rear automatic control with two speeds differential

    Braking: Electronic regenerative braking with electric brake on when stopped and hydraulic disk brakes on all four wheels by foot

    Parking Brake: Hand on floor on rear wheels; Electric brake on motor and rear wheels

    Wheels: 400-10

    Suspension: Front and Rear: Integral hydraulic damping

    Tyres: 17×4″ 400-10 | Pressure: Front: 220kPa, Rear: 250kPa (32/35 PSI)

    Shipping details (Net by Transporter or Pallet): 350 kg 226x125x170 cm 4.8 cubic meters

    * Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications. NOTE: Do not go below 61V when resting.

    Iterations:
    Daisy V1 2021
    Daisy V2 2022 Replaced lead acid battery with Lithium battery, added air conditioning
    Daisy V2 2023 added 2-speed diff
    Daisy V2AC 2023 added Soft Start
    Firefly HB 2024 Electronic regenerative braking, electric brake, foot brake, LiFEPO4 battery
    Firefly LHB 2024/2 Looped handlebar with finger operated wig-wag throttle, Li Ternary battery

    Additional Information

    Owners Manual

    Firefly Brochure

    CHARGER Instructions Guide

    Parts – All parts and prices (Service agents nationwide provided at wholesale prices)

    Colours available

    FIREFLY V4LHB Motor & Battery Combination

    FIREFLY V4LHB has been upgraded to have a Lithium Ternary Battery giving great performance.
    NOTE; the range is reduced with the regenerative braking motor.

    FIREFLY V4LHB has a 60V AC 1.5 kW Brushless Motor, powerful and efficient.

    FIREFLY V4LHB has an upgrade 60V 80Ah Lithium Ternary battery that should be charged as close to and before it is driven 30 km. ZERO the odometer at each charge and drive up to 30 km, or when the resting voltage is 61V. Do not drive beyond this voltage, as this is at 20% SOC, and the minimum the battery should be subjected to.
    This battery can also withstand extremes in temperature without damage.

    ALWAYS FULLY CHARGE YOUR FIREFLY BATTERY BEFORE USING FROM NEW. RESET ODOMETER TO ZERO.

    In practice depending on driving style, terrain, load, speed etc, you will get around 30 km distance maximum. With the heater or air conditioner going, you will get less distance. Also, remember Lithium batteries have a VERY short end phase in their power supply, so run out very quickly.
    DO NOT go below 61V while battery is resting.

    For BEST LIFE, using this Li Ternary battery, it is best to not go below 61V when resting and to recharge as few times as possible.

    DO NOT RELY SOLEY ON THE BATTERY GUAGE, USE THE ODOMETER and VOLT METER.
    The battery must never go below 20% SOC as you will shorten the battery life.
    That is at the 61V resting value or around 30 km range.

    When charged, disconnect the charger and use your Daisy Firefly V4LHB as soon as possible, the next day is ok, to use some of the top charge in the battery, as the Lithium Ternary battery prefers not to be left or stored fully charged.
    When in storage, the Lithium battery should be charged to approximately 63-65 V, half full, or half empty, and make sure the Daisy’s Power / Overload switch is OFF, so there is no chance of accidentally drawing current from the stored battery.
    Check the battery voltage every month and top up to 65V if required.

    If the battery goes below 49 volts, the BMS (battery management system) will switch off to protect the battery, and the battery will have to be returned to Ronica Trade to try and remedy the situation. There is a 250.00 fee (if successful) to attempt the resurrection, and no guarantees.

    Please note, this information is as per this particular type of Lithium battery and is not what you may know or be told about other types of Lithium batteries.

    The above data was calculated using a Victron Shunt Energy Analyzer.

    FAQ's

    Does my FIREFLY V4LHB Mobility Scooter need to be registered?
    In Australia you do not register your Mobility Scooter, except for Queensland, and it is registered for ownership only.

    Do I need a driver’s license to drive my FIREFLY V4LHB Mobility Scooter?
    You do not need a driver’s license to drive your Mobility Scooter.

    Can I drive my FIREFLY V4LHB Mobility Scooter on the road?
    You may drive your FIREFLY V4LHB Mobility Scooter on a public road if for any reason the footpath is not suitable or not available. You must obey all the rules of a pedestrian or cyclist.

    Can I carry a passenger in my FIREFLY V4LHB Mobility Scooter?
    Your FIREFLY V4LHB Mobility Scooter is able to accommodate a passenger or two smaller passengers. It is recommended to notify and obtain approval from your local authority.

    I need to move my FIREFLY V4LHB Mobility Scooter by pushing it?
    Your FIREFLY V4LHB Mobility Scooter has an Electric Brake, which engages when it comes to a full stop.
    This brake can be disengaged by lifting the lever on the RHS of the motor under the rear.
    Remember to engage the electronic brake before using by moving the lever downward.

    What materials is the FIREFLY V4LHB Mobility Scooter made from?
    The FIREFLY V4LHB Mobility Scooter panels are made from ABS, an impact-resistance engineering thermoplastic. The windscreen and windows are made from Tempered Safety Glass, so they will not shatter into shards that cut you if broken. The frame construction is unitary, very strong one-piece steel. All to vehicle industry standards.

    How often should I charge my FIREFLY V4LHB Mobility Scooter?
    It is best to charge the battery as few times as possible up to 30 km max distance or 61V resting.
    You may fully charge the battery overnight and remove the charger the next day, if you intend to drive your FIREFLY V4LHB Mobility Scooter soon.
    When in storage, or not intending to use for more than a week, switch off the Circuit Breaker (Kill Switch / Overload Switch) and charge the battery to 65V each month.

    How can I check I am charging my FIREFLY V4LHB Mobility Scooter at the right time?
    The recommended way of checking the power used and replaced by the charger is to purchase a Power Meter and check your power usage. The 80Ah battery has 4.8kWhr (4800 Whr) of power in it when full, and at 20% SOC it will require 3.84 kWhr to fill to 100% SOC. The results will give you an idea of what power you are using and what kms you can travel without going below the 20% SOC.

    What is the average life of a FIREFLY V4LHB Mobility Scooter battery?
    The FIREFLY V4LHB Lithium Ternary batteries are able to be charged around 500x. Follow the charging instructions as in the previous question. Check the Firefly Motor / Battery Combination section for further details.

    Why is a Lithium battery so much better than a Lead-Acid battery?
    Firstly, the voltage platform is higher for a Lithium battery, and thus there is more power produced by the motor, and more consistently.
    Secondly, the power available (power density) is much greater, making the battery much lighter, and thirdly the power is able to be delivered much faster.
    Lastly, the ideal temperature for all batteries is 25 C. Temperature limits are, for Lead Acid 0-+35 C, for the FIREFLY V4LHB Lithium battery it is -20-+45 C. Temperatures over 35 C damage lead acid batteries.

    Is the FIREFLY V4LHB Mobility Scooter battery safe ?
    Everyone by now has heard of Lithium battery fires occurring. All of the fires can be accounted for due to many individual factors that are not the norm in the use of the original lithium battery with the correct charger.
    The FIREFLY V4LHB‘s Li Ternary battery is safe if use as instructed, and they are of similar chemistry to the Tesla battery.

    What is the running cost of a FIREFLY V4LHB Mobility Scooter?
    The electric power cost for the FIREFLY V4LHB is approximately 2 cents/km.
    As in all electric mobility devices, it is the cost of the battery that is the expensive part.
    The total running cost of a FIREFLY V4LHB is about 12 cent/km plus any servicing.

    Can I use other batteries in my FIREFLY V4LHB?
    You could also use another type of battery in your FIREFLY V4LHB, but the Lithium Ternary battery supplied is the best for the job, as explained in the answers above.
    We recommend to only install the correct battery available from your dealer or directly from Mobility Scooters for Hire Sale Service.

    What is the service schedule for FIREFLY V4LHB?
    Your FIREFLY V4LHB requires a service every year or 1000km.
    Change the differential oil with SAE 80W-90 gear oil.
    Use 3in1 oil on all joints and moving parts.
    Wash with running water and a very soft cloth or brush, and wipe as required with a damp soft cloth. Do not use detergents or other cleaners, they are not required. Never wipe in a dry condition, as the dust and sand will scratch surfaces. A UV Protectorant polish is recommended to be applied monthly after washing to protect the paint covering from Australia’s harsh sun’s UV damage.

    What is the correct way to connect the power to the charger to charge you LEMS?
    Operation Instructions :
    Connect outlet plug of the charger to your FIREFLY V4LHB.
    Connect the inlet plug of the charger to AC power socket, and when or if connected, turn the power switch on.
    When the indicator light is RED it is charging (sometimes this maybe flashing at around one second intervals). When GREEN it is fully charged.
    Charging time is proportional to the power required to fully charge the battery, and that is what was used since the last charging.

    To disconnect the charger, firstly turn off or remove the charger input plug from the AC power supply.
    Remove the charger outlet plug from the FIREFLY V4LHB.

    Notes :
    Do not use outside in the sun, rain or damp
    Do not use in dusty conditions
    Do not use inside your FIREFLY V4LHB
    Do not place on or near inflammable materials
    Do not drop
    Ensure the correct charger is used for correct battery type and capacity.
    Some chargers have different colour light sequences, please check and note when first using.

    Videos

    Reviews

    There are no reviews yet.

    Be the first to review “Firefly V4LHB”

    Your email address will not be published. Required fields are marked *

      Enquire Now

        Contact Us
