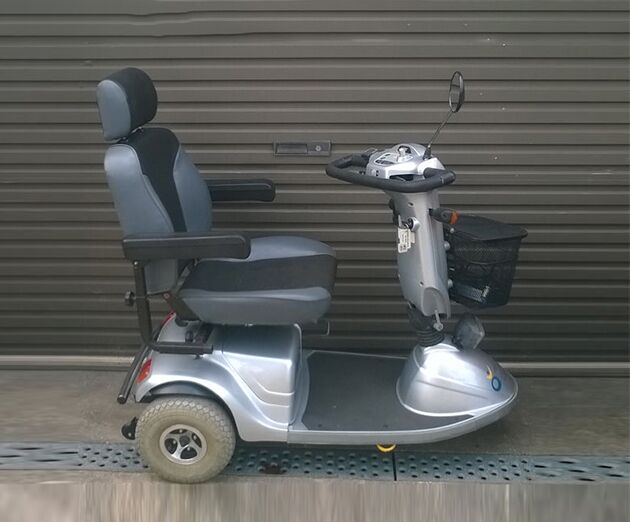

    Magda (CTM HS-730 Mid-Size Three Wheel Mobility Scooter)

    Category: Product ID: 12668

    Quality taiwanese made, and although a few years old, CTM continue to provide the common parts.
    It was the new standard in stylish design and top performance in a Heavy Duty 3 wheel scooter and loaded with the same features as top end mobility scooters

    Description

    The CTM HS-730 Heavy Duty 3 Wheel Scooter
    Quality taiwanese made, and although a few years old, CTM continue to provide the common parts.
    It was the new standard in stylish design and top performance in a Heavy Duty 3 wheel scooter and loaded with the same features as top end mobility scooters such as:
    Full light kit with front light, tail light and directional signals, swivel, sliding seat, infinitely adjustable tiller, rear view mirror, front and rear bumper, front basket with closable lid, contoured padded seat with adjustable arm rests, and much more!
    This scooter was designed for the optimum in outdoor travel over grass, gravel and rough terrain and with its powerful four pole motor is a capable hill climber as well.

    Features

    • Heavy duty 3 wheel mobility scooter
    • Optimum for travel outdoors, over grass, gravel and rough terrain, and the hills !
    • Fast 14 kph and very sturdy
    • Full lighting kit, front light, tail light and directional signals
    • Anti fatigue delta handle bar – very comfortable, with lightweight easy speed handle
    • Two speed switch and variable speed knob
    • Luxury swivel, sliding contoured padded tall seating, with head rest
    • Infinitely adjustable tiller
    • Rear view mirror
    • Front and rear bumper
    • Included front closable basket
    • Rear coil-over suspension
    • 180 kg capacity

    Specifications

    Item Specification
    Colour Magda is in Silverado Silver
    Length 1340 mm
    Width 675 mm
    Weight total 99 kg
    Weight capacity 180 kg
    Turning radius 1100 mm
    Maximum speed 14 km / hr
    Maximum range * 40 km ( in ideal conditions )
    Maximum slope 12 degree
    Ground clearance 75 mm
    Obstacle ability 60 mm
    Seating Tall back luxury swivel sliding adjustment, lift up fully adjustable arm rests, reclining,
    width 480 x depth 460 x height 500 + headrest mm,
    weight 20.4 kg
    Motor Rear 24 V 700 (continuous) Watt 4100 rpm 4 pole motor
    Braking Electro-mechanical
    Wheels Alloy
    Tyres front 300 mm pneumatic (12″)
    Tyres rear 330 mm pneumatic  (13″)
    Tyres pressure 30 – 35 psi
    Suspension Rear coil-over suspension
    Batteries 2 x 12 V x 44 Ahr
    Battery charger Off board 5 – 8 Amp

    * Varies with user weight, terrain type, battery charge, battery condition, and tyre condition.

    Additional Information

    Owners Manual
