Description

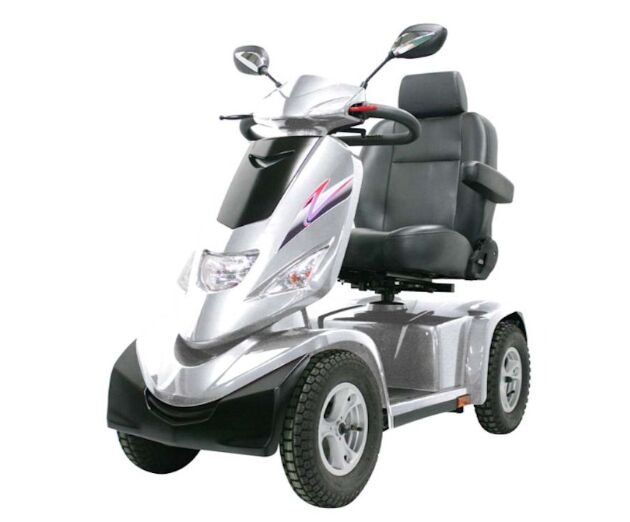

CTM HS 928 Mobility Scooter
The CTM HS 928 is a stylish new look scooter with LCD display, tiller storage compartment and large 15″ tyres.
CTM HS-928(Large-Size Mobility Scooter)
CTM HS 928 Mobility Scooter The CTM HS 928 is a stylish new look scooter with LCD display, tiller storage compartment and large 15 inchtyres…
Features
- Heavy Duty Frame
- Heavy Duty 800 Watt Motor
- 38cm Front and Rear Wheels
- Front & Rear Suspension
- Hand Brake
- Movable Tiller
- Mirror, Head Light & Indicators
- Captains Seat with Head Rest
- New LCD Display
- Tiller Storage Compartment
- Maximum Speed 12.5 km/hr
- 2 x 100 Amp Hour Batteries
- Weight Capacity 226kg
Specifications
| Item | Specification | ||
|---|---|---|---|
| Colour | Silver | ||
| Length | 1600 mm / 63“ | ||
| Width | 720 mm / 28.4″ | ||
| Height overall max | 1270 mm / 50″ | ||
| Weight total | 178 kg / 392 lbs | ||
| Weight w/o batteries | 109.6 kg / 241 lbs | ||
| Battery weight | 68.4 kg / 151 lbs | ||
| Weight capacity | 226 kg / 500 lbs | ||
| Turning radius | 1860 mm / 73″ | ||
| Maximum speed | 15 kph / 8.3 mph | ||
| Maximum range * | 50 km / 30 miles ( in ideal conditions ) | ||
| Maximum slope | 9 degree | ||
| Ground clearance | 110 mm / 4.3″ | ||
| Curb climbing ability | 60 mm / 2.4″ | ||
| Seating | Captain Seat, with head rest, reclining, Swivel, sliding width 56 cm / 22″ |
||
| Control operation | Wigwag paddle, variable speed, Delta handle bar | ||
| Braking | Electro Mechanical | ||
| Electronics | LCD screen | ||
| Wheels | Type: Pneumatic Front 380 mm (15 in.) Rear: 380 mm (15 in.) |
||
| Suspension | Front and Rear | ||
| Motor Output | 24V DC 800 Watt 4300 rpm | ||
| Batteries | 2 x 12 V x 100 Ahr | ||
| Battery charger | Off board 8.0 Amp | ||
* Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre condition.
