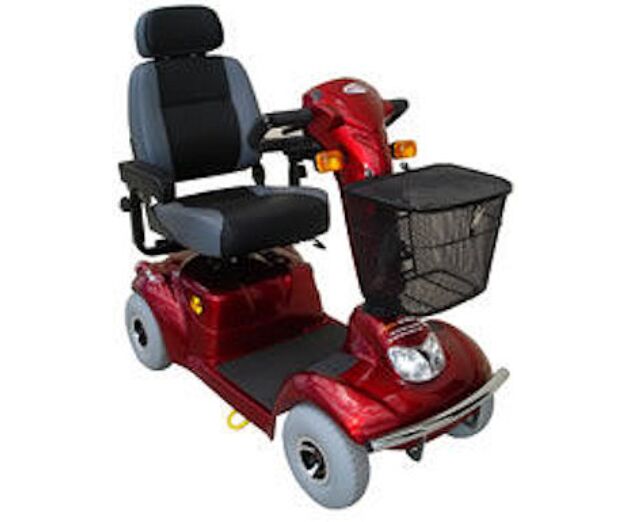

    CTM HS-686 (Moira – CTM HS-686 Mid-Size Mobility Scooter )

    Category: Product ID: 12513

    CTMs HS-686 is a super mid size scooter with CTM’s renown reliability plus all the extras. The combination of large tyres, deluxe seating and suspension provide a luxurious ride. This really is a great package

    Description

    CTM’s HS-686 is a super mid size scooter with CTM’s renown reliability plus all the extras. The combination of large tyres, deluxe seating and suspension provide a luxurious ride. This really is a great package.

    The same legendary CTM reliability, but this one comes with all of the extras. Headrest, delta handle bars, turn indicators, mirror, locking front basket and comfortable high-back seat. A very stylish mid sized scooter that can be fitted with long distance 55ah batteries.

    Features

    • 290 mm / 11″ Rear Wheels
    • Full Lighting Package
    • 480 mm / 19″ Tall Back Luxury Swivel Seat
    • Rear Suspension Coil-Over Suspension
    • Automation On-At-Dark Safety Headlight

    Specifications

    Item Specification
    Colour Red
    Length 1340 mm
    Width 625 mm
    Height 1000 mm
    Weight w/ Batteries 70.5 kg
    Weight Batteries 25.0 kg
    Weight capacity 160 kg
    Turning radius 1430 mm
    Maximum speed 8 kph
    Maximum range * 25 km ( in ideal conditions with 33 Ah batteries)
    Ground clearance 50 mm (2″)
    Curb climbing 50 mm (2″)
    Maximum slope 12 degree
    Seating Premium Upholstery Mid-back with Headrest Swivel
    Seat width 480 mm (19″)
    Motor size DC24V / 500W 3400 rpm
    Braking Electro-mechanical
    Wheels Aluminium alloy mags 290 mm / 11″
    Tyres front 90 x 300 mm
    Tyres rear 100 x 300 mm
    Tyres pressure 30 – 35 psi ( Do not under or over inflated ! )
    Suspension Rear
    Batteries 2 x 12 Volt 33 Ahr
    Battery charger 5 Amp
    Electronics On/Off Key Switch, Battery Level Indicator,
    Speed Control Knob

    * Varies with user weight, terrain type, battery charge, battery condition, and tyre condition.

    Additional Information

    Owners Specifications Manual AUS
    Owners Full Manual USA
