| Regal 344A | Regular Seat, XL Seat |
|---|
Regal 344A
$8,100.00 – $9,080.00
Merits Regal 344A & 344A XL with 4 wheel adjustable suspension system allows for better rider control and comfort. Large 14” wheels which provide greater ground clearance. Larger 4 pole motor and larger controller delivering more power for climbing steep inclines
Features
- Looped handlebars offer comfortable throttle operation
- 4 wheel adjustable suspension system allows for better rider control and comfort
- Large 14” wheels which provide greater ground clearance
- Larger 4 pole motor and larger controller delivering more power for climbing steep inclines
- Built-in half speed safety switch which operates automatically when turning to provide extra safety
- New and improved, fully adjustable leather-feel seat, allowing maximum rider comfort
- Separate emergency braking system for added security
- New, easy to access 12 volt socket
- Available in wide seat version (Regal 344A XL)
Specifications
Technical Specifications
Max Speed 12kph/7.5mph
Range 40-50km/26-32mi
Turn Radius 167cm/65.7″
Ground clearance 10cm/4″
Motor DC 24V, 650W (Rating)/
2200W (Max)
Controller Rhino 160A
Battery 12V/60-80A/H x 2pcs
Charger 8A off-board
Gradient 8°
Front Wheel 14″ pneumatic
Rear Wheel 14″ pneumatic
Brake intelligent, regenerative,
electromagnetic brakes
Dimensions
Overall Dimension : A x B x C 152 x 71 x 135cm/60 x 28 x 53″
Seat Dimension : D x E x F 56 x 50 x 56cm/22 x 20 x 22″
Seat Dimension
(Regal 344A XL): D x E x F
80 x 46 x 51cm/31.5 x 18 x 20″
Seat Height from Ground : G 56-64cm/22-25″
Seat Height from Deck : H 40-48cm/16-19″
Wheel Base : I 104cm/41″

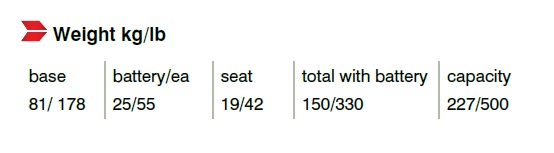

Weight
Additional Information
Owners Manual
Regal 344A Parts List
Regal 344A Brochure
Regal 344A 1 Tech Specs
