    Maverick

    $110.00

    Start Date
    End Date
    Accessories & Parts:
    Buy it with.
    Left Joystic Controller,
    Right Joystic Controller,

    This product is on a long-term hire and a booking cannot be made for this device.

    Description

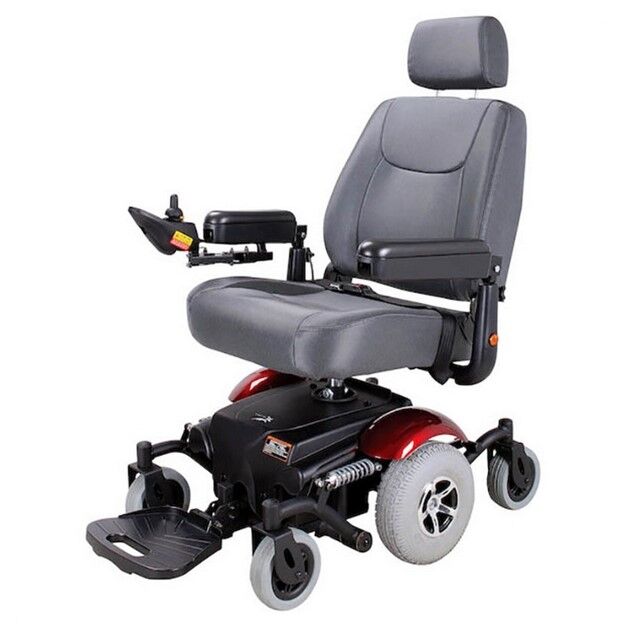

    Merits Maverick 10 P326A
    The Merits Maverick 10 Power Wheelchair is designed for both indoor and outdoor environments. With size wheels and a dynamic programmable controller this electric wheelchair is great for everyday use. The P326A model has six wheels with on ground technology that includes obstacle climb front and rear suspension to maintain a steady drive and keep the user comfortable. The height of the seat and armrests are adjustable and the backrest is semi-reclinable meaning this chair can accommodate a wide variety of users. The seat swivels 360 degrees, making it easier for users to get on and off the chair.

    Features

    • Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors, even over tough terrain
    • Patented obstacle climbing suspension
    • Dual in-line motors for enhanced efficiency, torque, range and performance
    • Low centre of gravity design delivers a smooth and stable ride
    • Swing away joy stick bracket
    • Speed control (hare and tortoise buttons)
    • Height and width adjustable armrests
    • Height adjustable seat with reclining back rest and swivel
    • Front and rear suspension
    • Reflectors on side and rear
    • 136 kg capacity

    Specifications

    Available Colours: Ruby Red

    Length: 86 cm

    Width: 61 cm

    Height: 107 – 112 cm

    Weight: 127 kg (with 70 Ahr batteries)

    Weight (without batteries): 76 kg

    Weight Capacity: 136 kg

    Turning radius: 47 cm

    Maximum speed: 8 km / hr

    Maximum range *: Up to 28 km ( in ideal conditions )

    Maximum slope: 6°

    Ground clearance: 5 cm

    Obstacle Ability: 11 cm

    Seating: Tall back luxury swivel, lift up arm rests, semi-reclining,
    width 46-51 x depth 46 x height 55-66 cm,
    Floor to seat height range 55-60 cm
    weight 20 kg

    Motor: 2x 24V DC, 160W (Rating) / 520W(Max)

    Controller: Dynamic Shark: 40A / VR2 40A

    Braking: Intelligent, regenerative, electromagnetic brakes

    Front Caster: 150 x 50 mm solid

    W Mid Drive Wheels: 300 mm pneumatic

    Rear Caster: 150 x 50 mm solid

    Tyres pressure: 40 psi

    Suspension: Front & Rear

    Batteries: 2 x 12 V x 30 / 40 Ah

    Battery charger: Off Board 5 Amp

    Free Wheel Mode: Yes

    * Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications.

    Additional Information

    Owners Manual
