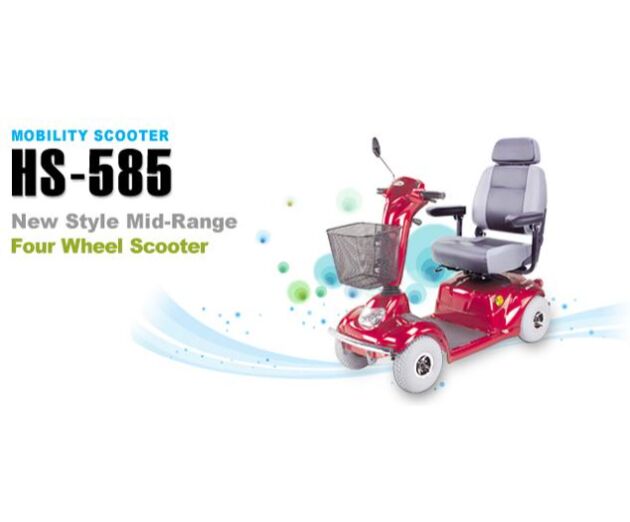

    CTM HS-585(Mid-Size Mobility Scooter)

    Category: Product ID: 12499

    Mid size scooter, later model to the 585, luxurious seating, delta handle bars with wigwag control, pneumatic tyres, the most comfortble scooter with out suspension, 8 km/hr, twin headlights, basket, rated 135 kg…

    Features

    The CTM HS-585 – also sold as the EVOLUTION.

    – Premium uphosltered seat with headrest, swivel, adjustable forward and back
    – Comfortable, pneumatic tyres
    – Head light, tail reflectors
    – On / off / heead light key switch
    – Battery level indicator
    – Speed control knob
    – Integrated front and rear bumpers
    – Transport tie downs
    – Seperatable frame
    – Travel Range up to 35 km approximate
    – Weight Capacity 135kg

    Specifications

    Item Specification
    Colour Burgundy?Silver?Blue?Turquoise
    Length 1280 mm
    Width 610 mm
    Height overall max 1110 mm
    Weight total 89 kg
    Weight w/o batteries 64 kg
    Battery weight 25 kg
    Weight capacity 136 kg
    Turning radius 1480 mm
    Maximum speed 8 kph
    Maximum range * 35 km ( in ideal conditions)
    Maximum slope 12 degree
    Ground clearance 60 mm
    Curb climbing ability 50 mm
    Seating Premium upholstery, mid back, head rest, swivel, sliding forward / backward adjustable
    width 45.5 cm / 18″
    Control operation Wigwag paddle, variable speed, anti-fatigue Delta handle bar
    Braking Electro Mechanical
    Electronics On/Off Key Switch, Battery Level Indicator, Speed Control Knob
    Wheels Type: Pneumatic
    Front 260 mm (10 in)
    Rear: 260 mm (10 in.)
    Suspension N/A
    Motor Output 24V DC 500 Watt 3400 rpm
    Batteries 2 x 12 V x 36 Ahr
    Battery charger Off board 5.0 Amp
