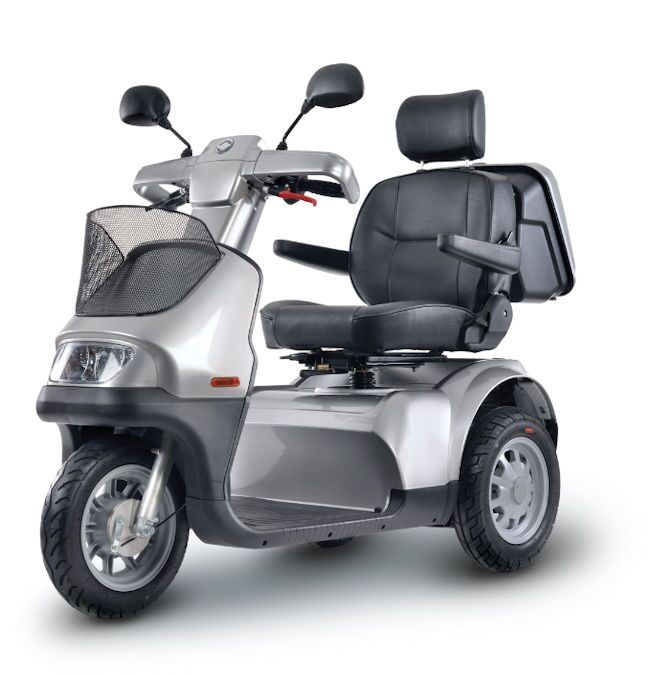

    Afiscooter S3

    Clear

    Description

    The Afiscooter S3 offers an impressive driving range, an ergonomic design to make the ride incredibly comfortable, a programmable electronic controller, LCD control screen and auto responsive LED headlights.

    The Afiscooter S3 has a fully adjustable tiller and an optional integrated canopy for protection from sun and light rain.
    The Afiscooter S3 has a fully adjustable orthopedic seat and a shock-absorbing steel frame.

    The 3 wheel model has an impressive sharp turning circle for a large scooter, and the suspension and steering systems with relatively large tyres provide a pleasurable car-like driving experience on long distance trips.

    The Afiscooter S is the winner of the prestigious Red Dot Design Award.
    For those who want the best !

    Testing Standards
    Afiscooters are designed with driver safety in mind and according to international standards. Afiscooters are certified for CE-12184 in Europe, FDA approved in USA and hold ISO 9001-2000.

    Features

      • Independent front & rear suspension
      • Amazing turning circle for a large scooter
      • Automatic dimming headlight
      • Indicating mirrors
      • Adjustable steering column
      • Waterproof LCD with speedo, odometer, clock, temperature
      • Double disc safety hand brake
      • Luxury fully adjustable orthopedic seat
      • Speed reduction on corners
      • Alloy rims and large tyres
      • High ground clearance
      • Malfunction diagnostics

    Specifications

      • Available Colours: Metallic Silver
      • Dimensions: 155 x 68 x 125 cm (L x W x H)
        Width will be an extra 20 cm for wide seat
        Height will be 164 cm with canopy
      • Weight (total): 153 kg – (add 15 kg for canopy, 12 kg for wide wheels)
      • Weight without batteries: 106 kg
      • Weight capacity: 200 kg
      • Turning radius: 143 cm
      • Maximum speed: 10-15 kph
      • Maximum range *: 45-50 km
      • Maximum slope *: 8° (15%) 15kph, 11° (20%) 12kph
      • Ground Clearance: 12.5 cm
      • Seating: 51 cm (20″) Captain style, fully adjustable – (wide seat 85 cm)
      • Motor / Gearbox: 24-volt 1400 Watt 4 pole DC, sealed transaxle
      • Controller: SD 140A
      • Control operation: Handle throttle, two speed, Delta handle bar, hand brake, phone holder
      • Dual Braking: Electronic, regenerative and electromechanical
      • Electronics: On/Off Key Switch, LCD screen LED lights
      • Tyres: Type: Pneumatic
        Front : 3.00×10
        Rear : 3.50×10
        Wide : 13×5.00-6
      • Tyre Pressures: Front : 30 psi
        Rear : 35 psi
        Wide tyres : all 20 psi
      • Suspension: Full suspension, four points
      • Batteries: 2 x 12 V x 80 /100 Ah (100AH Size available on Request)
      • Battery charger: Off board 8 Amp

      * Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications.

    Additional Information

    Product Brochure

    Canopy Brochure

    Operators Manual

    Rain Sides Installation Instructions
