    Breeze

    Category: Brand: Product ID: 10840

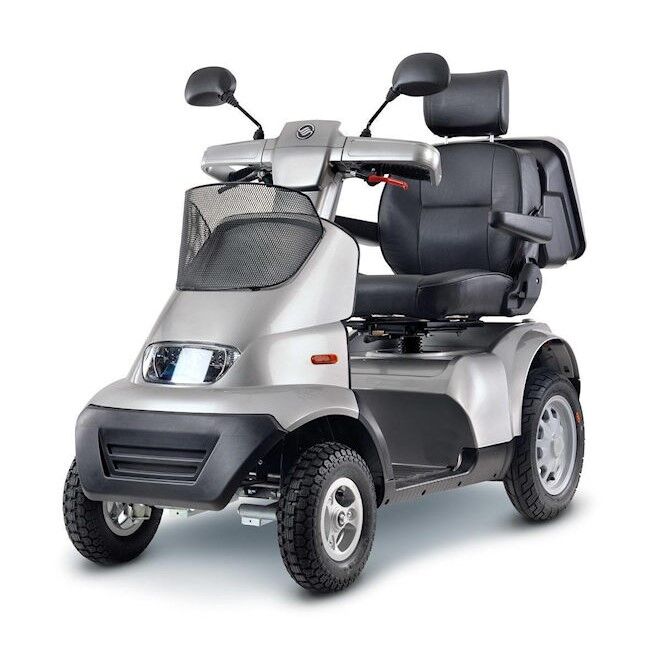

    Afikim Breeze IV Large Four Wheel Mobility Scooter

    Description

    The Afiscooter Breeze IV (Afi Breeze) scooter is the bench mark Large capacity scooter in the Australian market place since its inception.

    While the Breeze is DISCONTINUED, it has been replaced with the Afikim S4 Mobility Scooter

    The Afi Breeze IV maintains this position and holds the prestigious honor of receiving the red Dot award for design & Excellence.

    Style & Grace matched with Comfort & Rugged reliability you have no need to look else where.
    The Afi breeze will give you trouble free mobility.
    With a tried and true pedigree few other manufactures can match the Afi Breeze scooter is the scooter for you.

    Features

    • Award Winning quality scooter.
    • Large capacity scooter for the astute or heavy user
    • Fully adjustable swivel orthopedic seat with a movable headrest and armrests
    • Adjustable reach configuration using a single button for forward/reverse
    • Easy to use display control panel
    • Powerful headlight
    • Adjustable steering column
    • Double disc safety hand brake
    • Large tyres
    • High ground clearance

    Specifications

    • Available Colours: Metallic Silver
    • Dimensions: 165 x 68 x 125 cm (L x W x H)
    • Weight (total): 156 kg
    • Weight without batteries: 110 kg
    • Weight capacity: 200 kg
    • Turning radius: 228 cm
    • Maximum speed: 10-15 kph
    • Maximum range *: 45 km
    • Maximum slope *: 8° (15%) 15kph, 11° (20%) 12kph
    • Ground Clearance: 12.5 cm
    • Seating: 51 cm (20″) Captain style, fully adjustable
    • Motor / Gearbox: 24-volt 1400 Watt 4 pole DC, sealed transaxle
    • Controller: SD 140A
    • Control operation: Handle throttle, two speed, Delta handle bar, hand brake, phone holder
    • Dual Braking: Electronic, regenerative and electromechanical
    • Electronics: On/Off Key Switch, LCD screen LED lights
    • Tyres: Type: Pneumatic
      Front : 13×5-6
      Rear : 17×3.50-10
    • Tyre Pressures: Pressures
      Front : 20 psi
      Rear : 25 psi
    • Suspension: Full suspension, four points
    • Batteries: 2 x 12 V x 80 Ah
    • Battery charger: Off board 8 Amp

    * Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications.

    Additional Information

    Operators Manual
    Brochure
    Video
